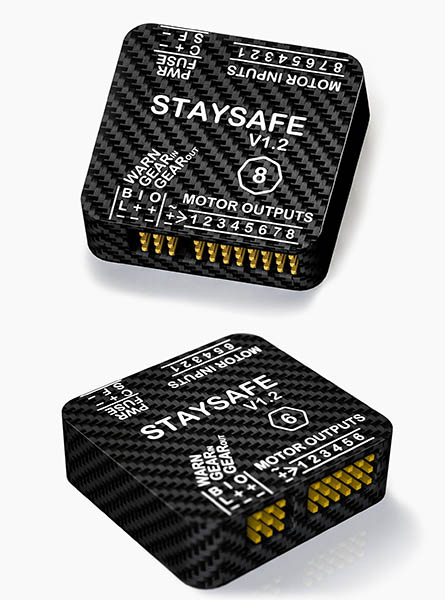

Staysafe

is universal safety device that stops the motors in case of parachute launch

Features

Immediate response - average response time below 10 ms

Multiple sensing modes - PWM and FUSE triggering option to fit them all

Versatile - Works with multirotor system with up to 8 motors

Damage reduction - Automatic landing gear deployment to reduce multirotor damage

Alarming - Provides incredibly loud sound alarm to warn sorroundings

Extra safety - Does not let you take off without properly installed triggering unit

Lightweight - Made out of lightest and strongest materials to provide lightweight

Carbon fiber - Enclosing is of real carbon fiber to match multirotor looks and provide additional interferance shield.

Quick stop - Motors are stopped with stop signal, which is fastest way of stopping the motors.

Standard connections - Device is connected with standard servo connections.

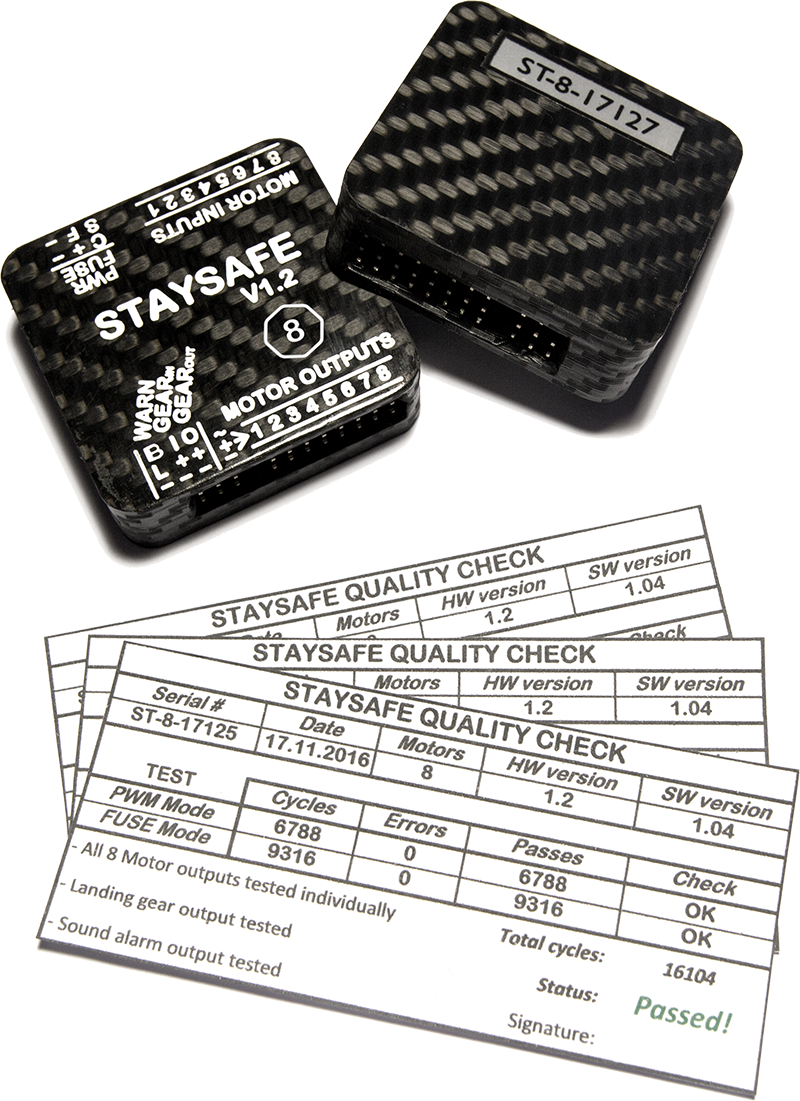

Quality assurance - Each individual device is extensively tested.


Technical specifications

Dimensions: 45x43x14mm / 1.77x1.69x0.55"

Weight: 18g / 0.63oz

Input voltage range: 4.5V - 5.5V

Current consumption: 10-30mA

Recommended input voltage: 5V ±0.1V

Fuse sensor voltage max: 16.8V (4s Li-Po)

PWM input signal: 50Hz, 5V, 500us-2500us

Gear down signal: 900us, 50Hz, 5V

Motor stop signal: 900us , 50Hz, 5V

Sound alarm loudness: 107dB+

Operating temperature:  -25°C - +40°C / -13°F - +104°F

Max number of motors support: 6 or 8
